Terayon BW3240

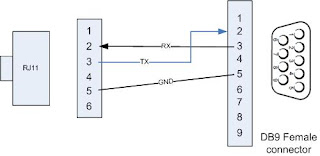

I have been working on configuring a Terayon BW3240 CMTS . Did not receive any documentation or console cable with the units. the major problem was accessing the console , the console port is RJ11 ,so I googled for R11 to RS232 pin out but could not find a standard pin definition . Finally I found some documents for TeryonBW3500 CMTS with RJ11 to RS232 connection diagram but the connector which was described in that was a RJ12 with 6 pins and the BW3240 only has RJ11 (4 pin) connector on it. Finally with some help , using a oscilloscope I managed to find which pin was Tx and which was Rx , the pin out is given below




3 comments:

Unknown said...

OMG, it's so exciting! :-)

Cable said...

Based on this....

http://www.lextec.com/images/ms_modular_colour_codes_lg.jpg

We took an RJ-11 with 6 conductors and tried this:


Color RJ-11 DB-9

Black 2 3
Red 3 2
Yellow 5 5

Any idea why this didn't work? We used your diagram and the standard RJ-11 numbering scheme.

My email is cablesight@gmail.com.

Ed

.............. said...

Thanks U. it's realy i need.
Now, im configure bw3240, bw3230 but i dont have any document about them.
If you have any document, please send for me. thanks U so much.
